越南水展信息：
2019 Vietwater ExhibitionExhibitor: Shandong Tomorrow Environmental Protection Technology Co.,Ltd
Period: Nov. 6th ~Nov. 8th 2019
Booth No.I06
Address: Saigon Exhibition & Convention Center(SECC)
799,Nguyen Van Linh,District 7,HCMC,Vietnam
吸引客戶到展位的措施：
1.獲取免費門票
2.現場簽約訂購，享受20%折扣
核心產品的圖片及優勢描述：

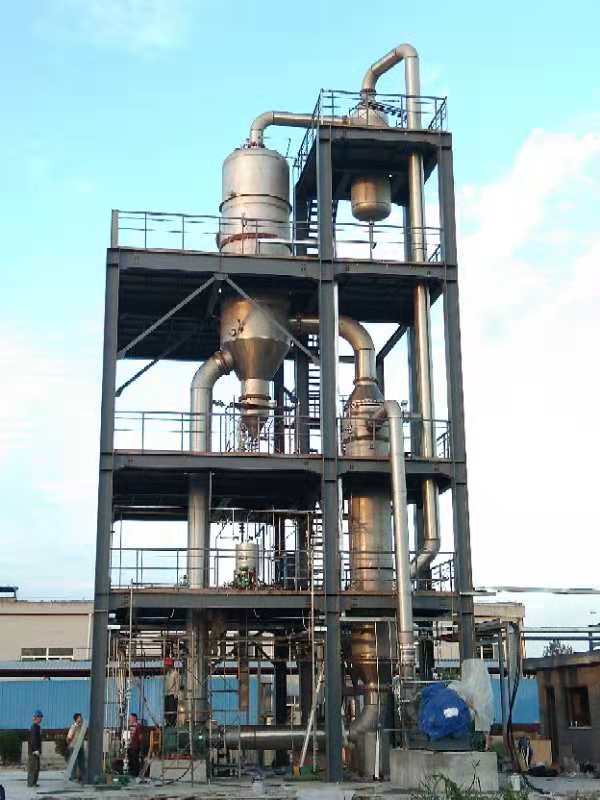

MVR Evaporator System
1.MVR energy-saving evaporator technology is currently the most advanced evaporator technology in the world, only a very small amount of raw steam is needed (a small amount of steam is required when starting up, Steam is almost no longer needed in normal operation, which greatly reduces the operating costs of the company and reduces environmental pollution.
2.because the heat source provided by the compressor is much smaller than the conventional evaporator, the temperature difference can be achieved, the product can be greatly improved, Reduce fouling.
3. no condenser or only a small area of condenser, the structure and process is very simple, fully automatic operation, continuous operation, safe and reliable.
4.The equipment is equipped with CIP cleaning pipeline, which can realize local cleaning. The whole set of equipment is easy to operate, no dead angle, high degree of automation and stable operation.
5.The evaporator is evaporated by the material at a low temperature (evaporation temperature 50℃ - 95℃) and is not easy to generate foam. The liquid is uniform and does not run material, not easy to coke, the material heat denaturation is minimal.
6.Although the initial investment quota is high, the return on investment of most projects is generally 1.5 to 2 years, and the maximum is no more than three years.
7.the electricity consumption of one ton of water evaporation is 23-70kw·h.

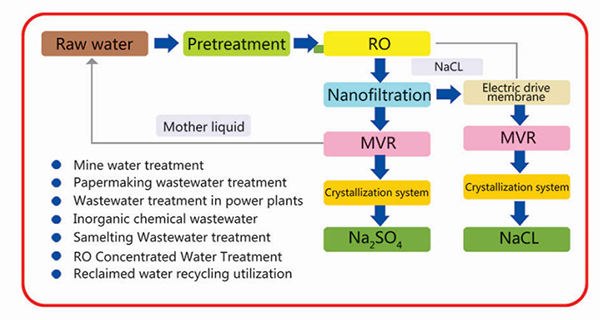

Zero Discharge Technology
1.Comprehensive use of membrane treatment + evaporation crystallization, high effluent quality, high quality crystalline salt;
2. Low operating cost, saving energy and no secondary pollution;
3. Water reuse, reduce the demand for water resources in the plant area, and have certain economic benefits;
4. The system is easy to operate, with a high degree of automation and a small footprint.

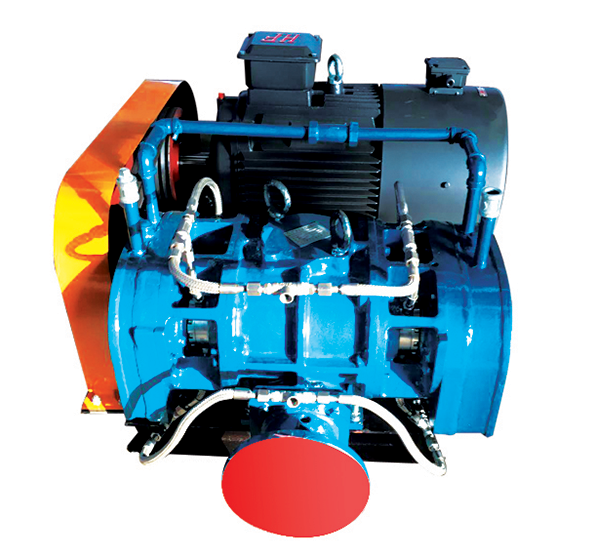

Roots Steam Compressor
1."Shangu" brand Roots steam compressor is an innovative product which independently developed by Shandong Mingtian Machinery Co., Ltd. The utility model adopts the assembled double-end professional mechanical seal to avoid seal failure and leakage of steam. only Various materials such as the duplex stainless steel (2205), super duplex stainless steel (2507), Hastelloy and austenitic stainless steel (316, 316L only for shell-wall plating and cast iron plating) can be designed according to the user's choice ,which can effectively prevent internal corrosion of steam compressors.
2.“Shangu” series Roots steam compressors have large air volume and large boost pressure coverage, and the product has a wide range of applications. The users can choose the applicable compressor. The processed capacity of the steam is 30-15000KG, and boost temperature of the steam is 10-25 °C.
3."Shangu" series Roots compressors are simple in structure, stable and reliable in operation, high in mechanical efficiency, easy to maintain; insensitive to dust, droplets and fibers contained in the steam to be transported; no lubrication on the rotor surface, steam without contact with oil, the delivered steam has no secondary pollution.
4.The impeller adopts a new profile, which has good sealing performance, smaller internal leakage, and high efficiency and energy saving. The product has high processing precision, reliable operation and long service life. Independent cooling system protects high temperature components during shutdown.
5.The specific internal clearance of the rotor prevents the thermal expansion of the rotor caused by different materials from exceeding the residual gap value and internal friction occurrence.
6.The bearing adopts NSK or SKF imported brand bearings to ensure the precise positioning of the impeller and high stability during operation.
7.The pulley adopts the expansion sleeve type with European standard , the pulley has long service life and convenient disassembly; the coupling (direct transmission) adopts standard high-strength elastic coupling, and the elastic component is made of rubber material, which is stable and reliable in operation and long in service life.
8.Adopt 5-100HZ variable frequency motor, the adjustment range of speed is wider, and it is more suitable for working conditions.
Environmental Steward Operation
1.Professional operators, strong testing team,Ensure that the facility is stable and up to standard;
2.Housekeeping operation management mode which make you more time-saving, trouble-free, and worry-free;
3.The operation reasonably arranges equipment and operating expenses according to the amount of water. As the water volume is continuously adjusted, the method is flexible and the investment in sewage treatment is reduced.
4.Rich industry experience and professional assessment indicators to reduce operating costs

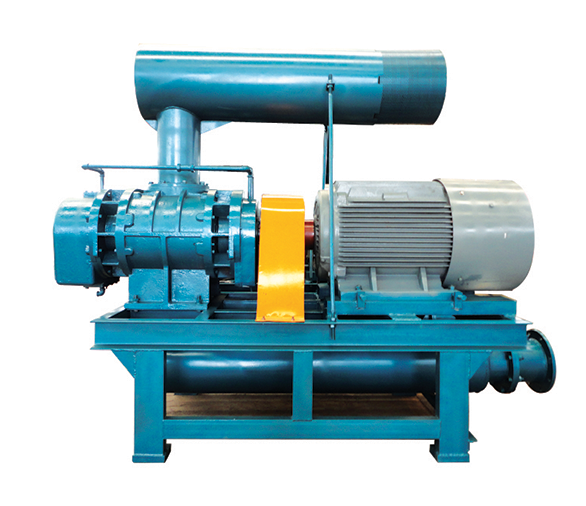

MJSR Series Roots Blower
1.Compact structure with high efficiency, save space
2.Stable capacity and pressure rise
3.Factory price and high quality
4.Oil free, no oil pollution for transportation medium
5.Standard mass production, sufficient inventory, short delivery time
Roots Steam Compressor/MVR Steam Compressor
1.Stainless steel (ss2205)material and imported bearing
2.Good mechanical sealing treatment
3.Smooth operation, strong anti-interference, no surge
4.Independent cooling system effective the high temperature spare parts
5.Oil free, no oil pollution for the transportation steam
6.Insensitivity to the dust, liquid drop and fiber in the steam
7.Patented product in China with technological and cost advantages
8.Efficient to reduce the operation cost of MVR Evaporator System
公司核心優勢：
1.公司注重產學研結合，是國內多家知名高校的成果產業化基地
2.進口加工中心等國際先進設備保證系統各配件精細加工、運行穩定
3.超過100套MVR蒸發系統的工程項目經驗；
4.技術雄厚的研發團隊，包括博士、碩士、名校本科42人的技術團隊
5.可以提供工藝包設計、蒸發設備安裝運行調試、租賃運行、環保管家服務。
6.公司擁有8項國家專利，環保工程專業承包二級資質以及ISO9001國際質量體系認證證書
7.產品立足原水水質：立足于原水，根據物料不同確定不同廢水處理工藝，保證出水水質穩定；
8.實踐與設計：以設計為基礎，結合實際項目經驗不斷完善設計，保證水處理工程的穩定性；
9.小試與中試：公司配備小試實驗室及200L中試樣機，能夠充分了解水質情況并且保證大生產運行穩定性；
10.完善的售后：特保羅以完善售后服務，保證項目運行穩定及健康；
11.主要合作客戶：國機集團浦景化工，中國鋁業云南銅礦，中鈔集團成鈔集團，齊魯制藥集團、山東圣泉集團等。
預約1對1的客戶現場見面會(huì )：
Making an on-site appointment with the Customers
Agenda
1.Discussion of MVR system solution of waste water treatment
2.If interested,making quotation as per selected model
3.Negotiation about deal condition
4.If possible, negotiation about sales distributor.
5.Cooperation achieved.
Contact Us:
Shandong Tomorrow Environmental Protection Technology Co.,Ltd
Add:Zhangqiu District,Jinan City,Shandong Province,China
Tel:+86-538-83828569
Fax:+86-538-83828579
Mobile/WhatsApp/Zalo:+8613869163278
Email:sales@cnrootsblower.com
Http://en.tebaoluo.com
Https://www.cnrootsblower.com
